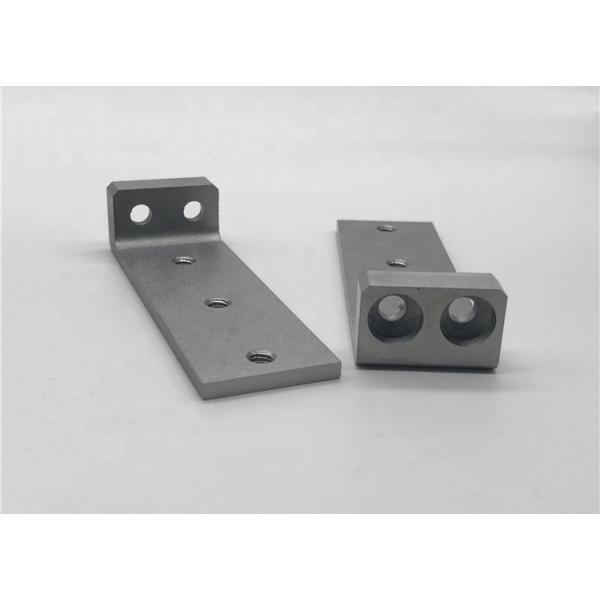

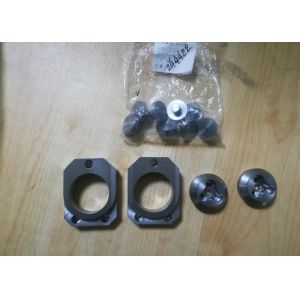

Molybdenum TZM Alloy Plate Components Applied As Functional Material

    Buy cheap Molybdenum TZM Alloy Plate Components Applied As Functional Material from wholesalers

    Buy cheap Molybdenum TZM Alloy Plate Components Applied As Functional Material from wholesalers
    • Buy cheap Molybdenum TZM Alloy Plate Components Applied As Functional Material from wholesalers
    • Buy cheap Molybdenum TZM Alloy Plate Components Applied As Functional Material from wholesalers
    • Buy cheap Molybdenum TZM Alloy Plate Components Applied As Functional Material from wholesalers
    • Buy cheap Molybdenum TZM Alloy Plate Components Applied As Functional Material from wholesalers

    Molybdenum TZM Alloy Plate Components Applied As Functional Material

    Ask Lasest Price
    Brand Name : Sanhui
    Model Number : TZM
    Certification : ISO 9001:2008
    Price : USD 50-80 per kg
    Payment Terms : D/A, D/P, T/T, Western Union
    Supply Ability : 500kgs per month
    Delivery Time : 15-20 days
    • Product Details
    • Company Profile

    Molybdenum TZM Alloy Plate Components Applied As Functional Material

    Molybdenum Alloy TZM Plate Components Applied As Functional Material

    Description:

    TZM alloy is Titnaium-Zirconium-Molybdenum Alloy and it is one of commonly used high temperature molybdenum alloy.

    TZM alloy has good mechanical properties, especially at high temperature.


    Physical performance comparison between TZM alloy and Pure Molybdenum


    MaterialDensity (g/cm3)Melting Point(℃)boiling point(℃)
    TZM (Ti0.5/Zr0.1)10.2226174612
    Mo10.2926105560

    Mechanical property (TZM)Elongation(%)Elastic modulus(GPa)Yield Strength (Mpa)Tensile Strength(Mpa)Fracture toughness(MP·m1/2)
    Value<20320560~11506855.8~29.6

    TZM (Ti0.5/Zr0.08) High temperature tensile strength and elongation


    Temperature/℃
    Properties
    Tensile Strength/MPa
    Elongation/%
    RT
    1140 ~1210
    7.5~13.0
    1000
    700 ~720
    5.2
    1200

    320 ~360

    9.0
    1300
    190 ~210
    11.5 ~13.5
    1400
    140 ~170
    11.0 ~16.0

    TZM (Ti0.5/Zr0.1)Thermal and electrical properties

    Properties
    Coefficient of thermal expansion/K-1
    (20~100℃)
    Thermal conductivity
    W/m·K
    Maximum temperature in air
    Resistivity
    Ω·m
    Value
    5.3X10-6
    126
    400
    (5.3~5.5)X10-8

    TZM alloy (molybdenum zirconium titanium alloy) also has good welding performance and can be well welded with H11 steel and other materials. At the same time, TZM alloy can resist the corrosion of liquid metal such as Zn. It can be cold worked by conventional methods. In the case of cooling lubricating oil, can use emented carbide or high-speed steel tools to machine.


    Parameters

    Thickness (mm)Width (mm)Length (mm)
    ≥0.02150L
    0.10-0.153001000
    0.15-0.204001000
    0.20-0.306502540
    0.30-0.506502540
    0.50-1.06502540
    1.0 -2.06002000
    2.0 -3.06002000
    > 3.0600L


    TZM Molybdenum Alloy Applications


    TZM molybdenum alloy can be applied for jet tube of flying vehicle and a variety of components of high temperature, high pressure turbine engine, such as hot gas seals and valves, turbine wheels or wheel blades.


    We also can make TZM customized parts according to drawings.
