    High Temperature Titanium Zirconium Molybdenum TZM Alloy Plate & Sheet

    Ask Lasest Price
    Brand Name : Sanhui
    Model Number : TZM
    Certification : ISO9001
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 10000 pcs per month
    Delivery Time : 20 days after order
    MOQ : 5 pcs
    • Product Details
    • Company Profile

    High Temperature Titanium Zirconium Molybdenum TZM Alloy Plate & Sheet

    High Temperature TZM Titanium-Zirconium-Molybdenum Alloy Plate & Sheet

    Specification of TZM:

    Product name
    Molybdenum Alloy TZM
    Density
    10.2g/cm3
    Chemical compositionMo+0.40~0.55%Ti+0.06~0.12%Zr+0.01~0.04%C
    Application area:Aerospace;Ion Source Equipment Components;Vacuum Furnace;Aviation and other industries
    Stess-relief temperature
    one hour at 1095 to 1260°

    Physical performance comparison between TZM alloy and Pure Molybdenum

    MaterialDensity (g/cm3)Melting Point(℃)boiling point(℃)
    TZM (Ti0.5/Zr0.1)10.2226174612
    Mo10.2926105560

    Mechanical property (TZM)Elongation(%)Elastic modulus(GPa)Yield Strength (Mpa)Tensile Strength(Mpa)Fracture toughness(MP·m1/2)
    Value<20320560~11506855.8~29.6


    TZM is a kind of Molybdenum Alloy which has excellent high temperature properties formed by solution strengthening and carbide dispersion strengthening of Titanium, Zirconium and Carbon in Molybdenum.

    TZM molybdenum alloy, as a high temperature structural and functional material, is widely used to make high temperature components such as Isothermal Forging Mold, X-ray Rotating Target, Heat Shield for high temperature furnace, Piercing Point (Seamless Stainless Steel Tube), inner wall material for nuclear fusion reactor, Protective Tile and so on.

    Applications of TZM:
    TZM rod has good high temperature properties and mechanical properties, so TZM alloy is widely used in various high temperature fields. It is commonly used in the manufacture of electric vacuum devices and electric light source parts, and is suitable for the preparation of ion implantation parts.

    As a high-temperature heating element and high-temperature structural parts, TZM alloy is often applied as the electrode of glass and refractory fiber industry. Working in 1300 ℃ glass melt, it has good performance and long service life. It is also often used as electrode in rare earth industry and is widely used. In addition, TZM rod can also be used in hot runner system to prepare various types of hot nozzles and hot runners.

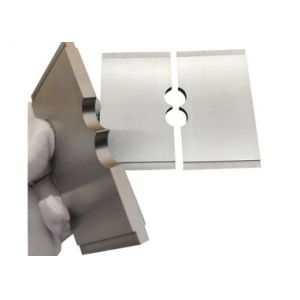

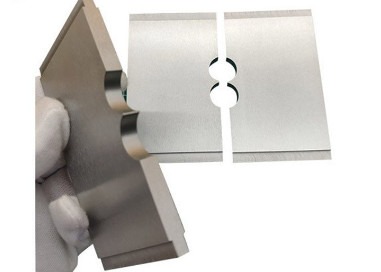

    TZM sheet and plate specification:(0.1-40)mm x(50-600)mm x(100-1500)mm

    TZM sheet and plate application:

    Products are used as arc chamber parts in ion implanter,high temperature furnace construction,

    die casting mold and other fields.


    Pls contact us freely if any need of TZM alloy in shape of rod,wire,sheet,plate or machined.
