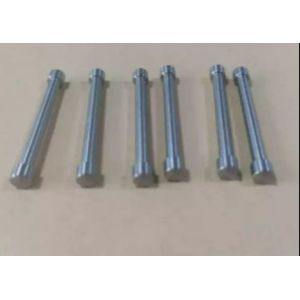

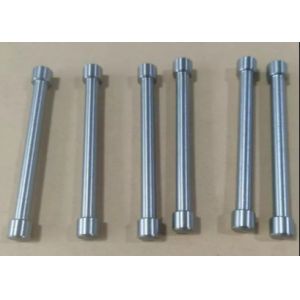

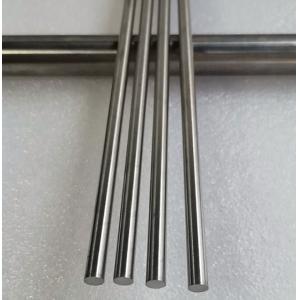

    99.95% Pure Molybdenum TZM / Alloy Bars With Dia 200mm

    Ask Lasest Price
    Brand Name : Sanhui
    Model Number : 99.95% Molybdenum
    Certification : ISO9001
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 5000 Kilograms per month
    Delivery Time : 20 days after order
    • Product Details
    • Company Profile

    99.95% Pure Molybdenum TZM / Alloy Bars With Dia 200mm

    99.95% Pure Molybdenum TZM/MoLa Alloy Bars With Dia1-200mm

    Introduction of Molybdenum Bar

    Brand: mo1, TZM, MoLa

    Standard: GB / t4188-1984

    Surface state: black, alkali washed, car polished, polished.

    Usage: molybdenum bars are mainly used for manufacturing electric vacuum parts, guide rods, electrodes, lead wires, high-temperature parts, furnace heating rods, etc.

    Specification of Molybdenum Bar

    NameDiaTolerance
    Forged molybdenum rod>80mm+/-2.0mm
    25mm-80mm+/-1.0mm
    Rotary forged molybdenum rod10mm-25mm+/-0.2mm
    3.0mm-10mm+/-0.1mm
    Machined molybdenum rod / bar>20mm+/-0.2mm
    Straightening molybdenum rod0.5mm-3.0mm+/-0.03mm
    Polished molybdenum rod/bar0.8mm-50mm+/-0.2mm


    Physical performance comparison between TZM alloy and Pure Molybdenum

    MaterialDensity (g/cm3)Melting Point(℃)boiling point(℃)
    TZM (Ti0.5/Zr0.1)10.2226174612
    Mo10.2926105560

    Mechanical property (TZM)Elongation(%)Elastic modulus(GPa)Yield Strength (Mpa)Tensile Strength(Mpa)Fracture toughness(MP·m1/2)
    Value<20320560~11506855.8~29.6


    Classifications of Molybdenum Bars
    Classification by material
    1. Pure molybdenum rod: the molybdenum content is greater than 99.95%.
    2. High temperature molybdenum rod (molybdenum lanthanum alloy rod): it contains 0.4 ~ 1.2% lanthanum, and the molybdenum content is the balance except impurities.
    3. TZM molybdenum rod: 0.4 ~ 0.6 Ti. 07 ~ 012 Zr, 0.01 ~ 0.05C

    Applications of Molybdenum Bars
    ① Molybdenum rod used for manufacturing electric vacuum devices and electric light source parts.
    ② Molybdenum bar is suitable for processing ion implantation parts.
    ③ Molybdenum rod is used as high-temperature heater and high-temperature structural parts.
    4. Molybdenum rod is used as the electrode of furnace in glass and refractory fiber industry, working in 1300 ℃ glass melt, long life
    ⑤ Molybdenum bar is used as an electrode in the industry.

    Molybdenum customized parts according to drawings are available.
